Battery Powered Electromagnetic Flowmeters (KF700E)

Battery Powered Electromagnetic Flowmeters (KF700E)

Performance Feature
Diameter:DN25mm-DN600
Electrodes:316L,Hb,Hc,Ti,Ta,Pt
Liner: rubber,PTFE
Medium:conductivity liquids
Medium conductivity:≥5μ s/cm ,softener water≥20μ s/cm
Accuracy:±1%RS-±1.5%RS
Velocity of flow:0.3m/s-5m/s
Working temp.:compact≤100°C
Working pressure: 4.0MPa(base on diameter)
Protection class:IP65,IP67,IP68(Remote)

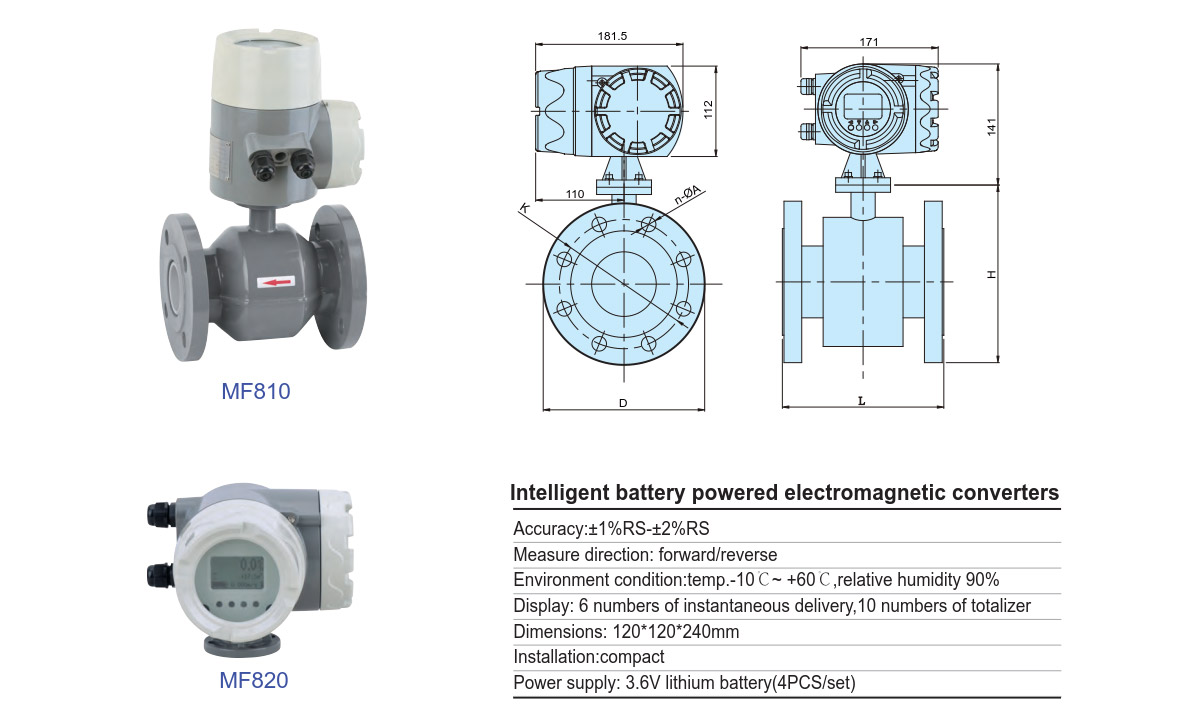

Optional converter type:MF800/810/820
Output signal:passive pulse(only for factory flow test)
Power supply: 3.6V battery
Installation:compact,remote

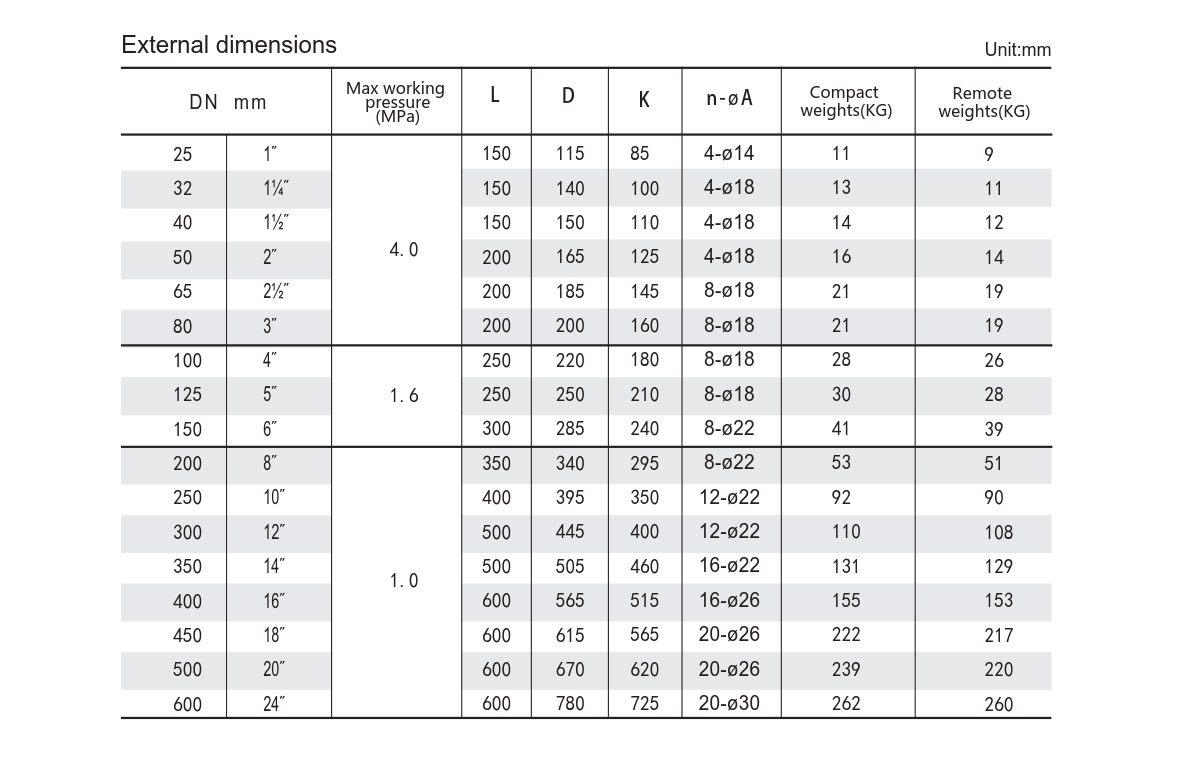

  • External Dimensions
  • Standard
  • How to order
