Electromagnetic Flowmeter Sensors (Thread Type)

Electromagnetic Flowmeter Sensors (Thread Type)

Performance Feature
Diameter: DN10mm-DN100
Electrode: 316L,Hc,Ti,Ta,Pt
Liner: PTFE,PFA
Medium: conductivity liquids
Medium conductivity :≥5μ s/cm
Accuracy: ±0.5%RS- ±1.0%RS
Velocity of flow:0.1m/s- 10m/s
Working temperature:compact≤100°C,remote≤150°C
Working pressure:1.0MPa
Related converter type:MF710/MF720/MF730/MF750/MF760
Connection standard:BSP
Power supply: 85~265VAC (50HZ or 60HZ) /24VDC
Installation type: compact, remote

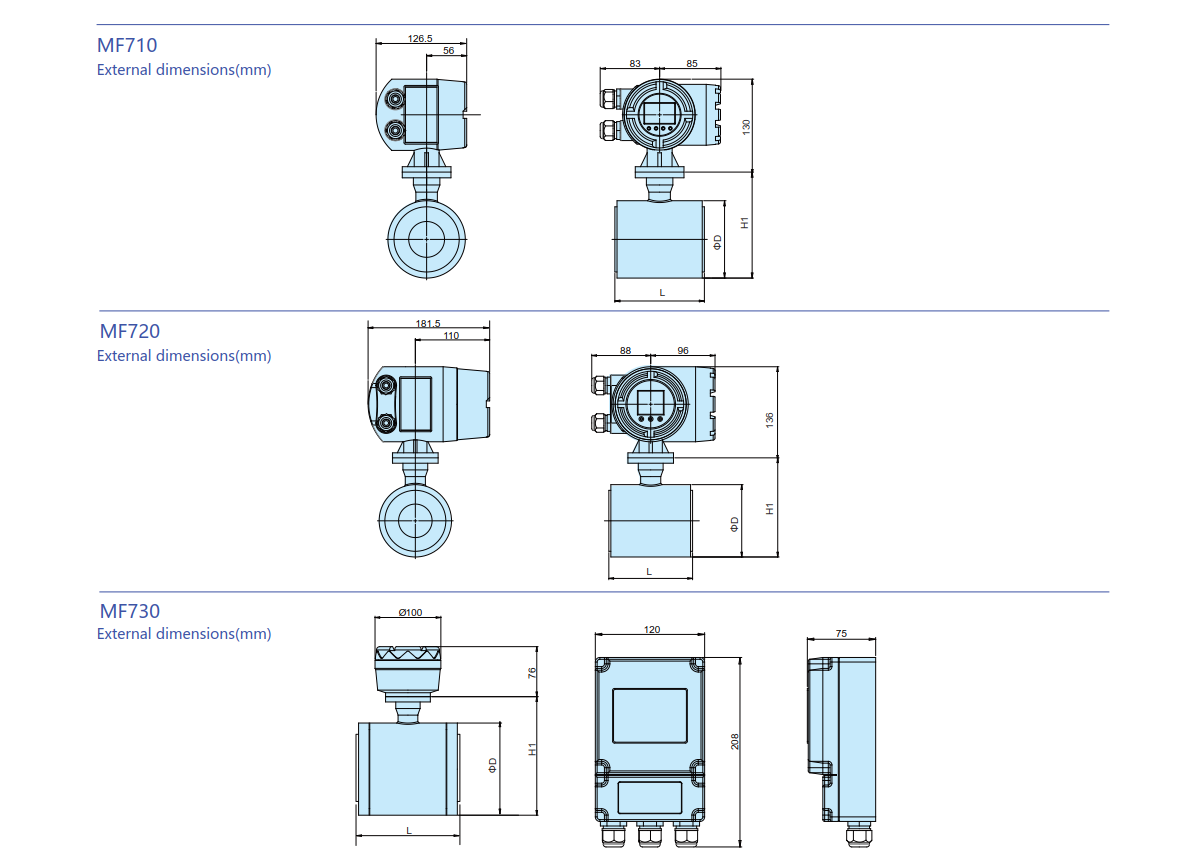

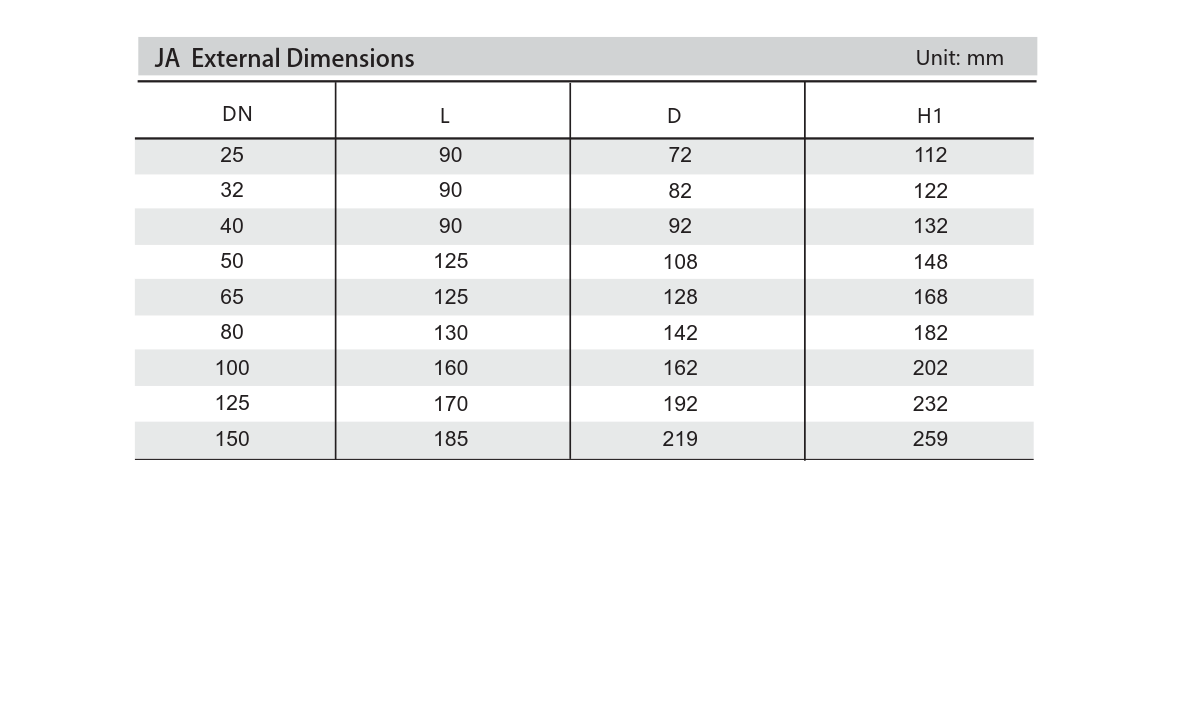

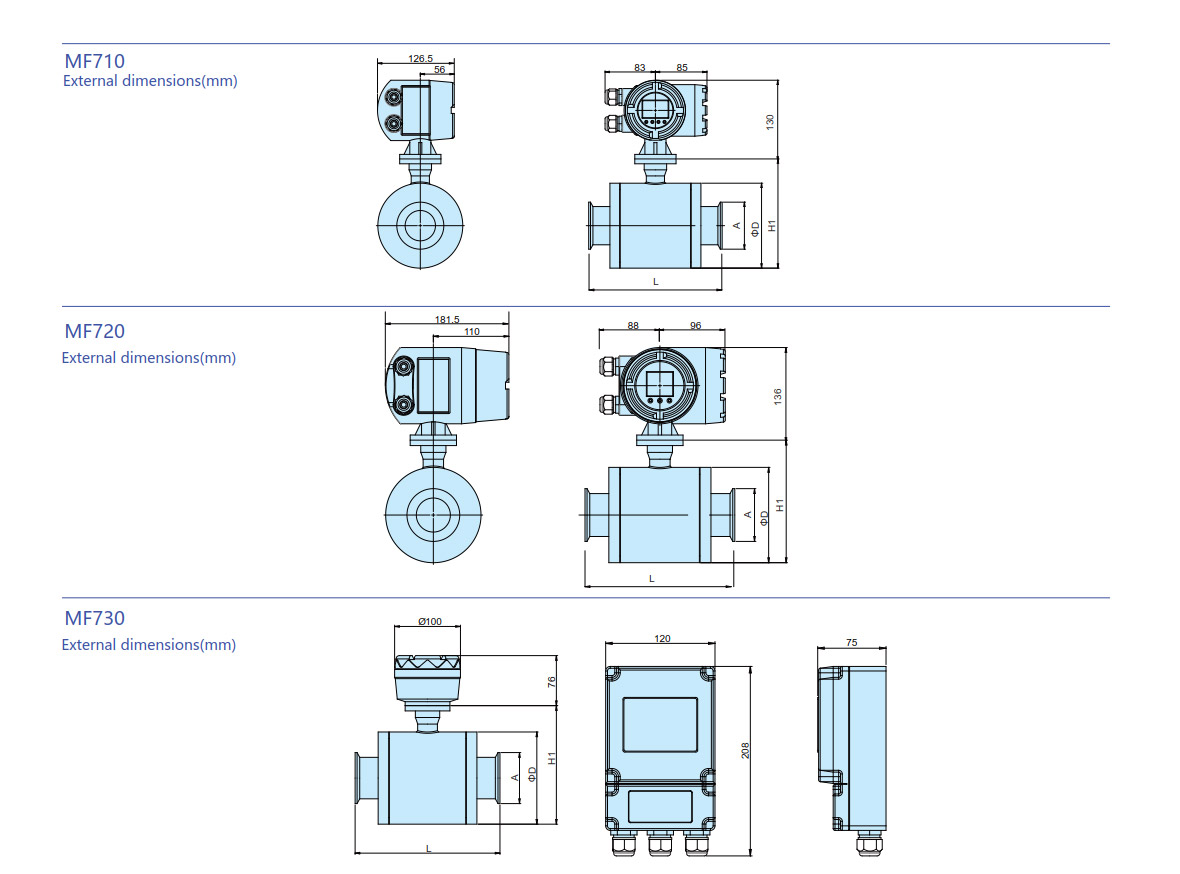

  • External Dimensions
  • Standard

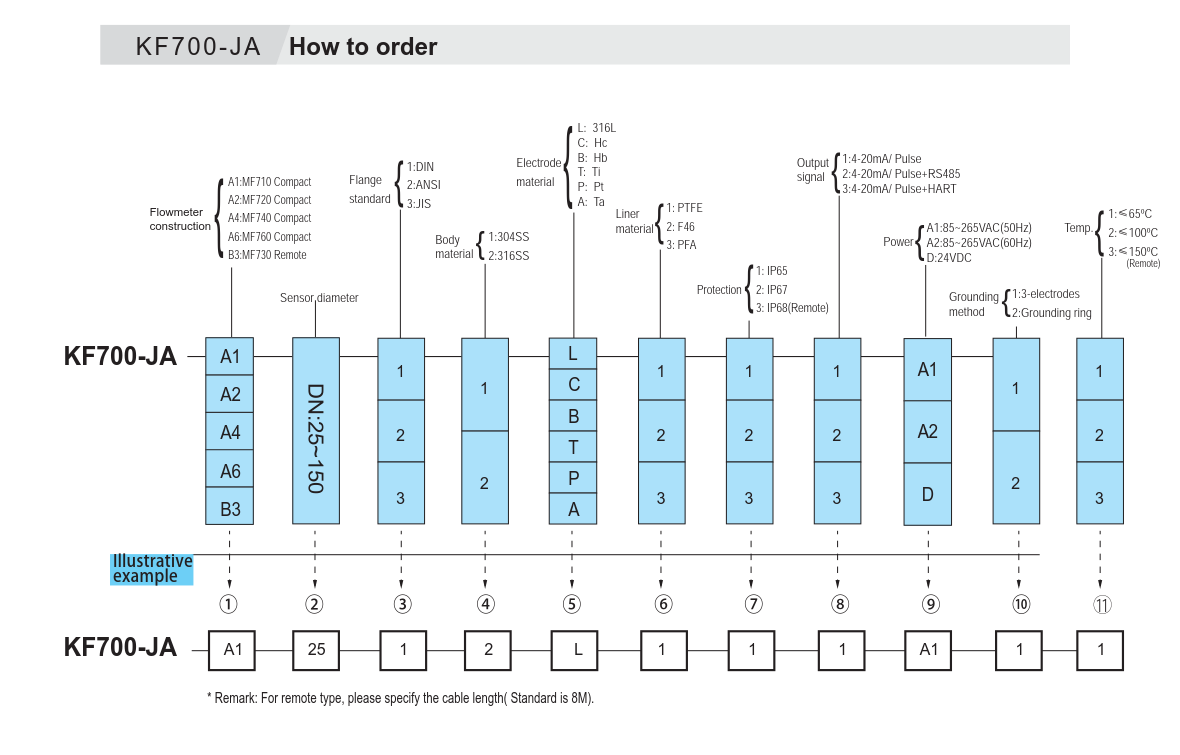

  • How to order
  • Flow range chart pupe size
