1.0MPa Working pressure Electromagnetic fowmeter sensors (Wafer type)

1.0MPa Working pressure Electromagnetic fowmeter sensors (Wafer type)

Performance Feature

Diameter: DN25mm-DN150
Electrode: 316L,Hc,Ti,Ta,Pt
Liner: PTFE,PFA
Medium: conductivity liquids
Medium conductivity : ≥5μ s/cm
Accuracy: ±0.25%RS,±0.5%RS,±1.0%RS
Velocity of flow:0.1m/s-10m/s
Working temperature:-25°C~150°C
Working pressure:1.0MPa
Related converter type:MF710/MF720/MF730/MF750/MF760
Connection standard:DIN
Output:4-20mA/ frequency/pulse
Power supply: 85~265VAC (50HZ or 60HZ) /24VDC
Installation type: compact, remote

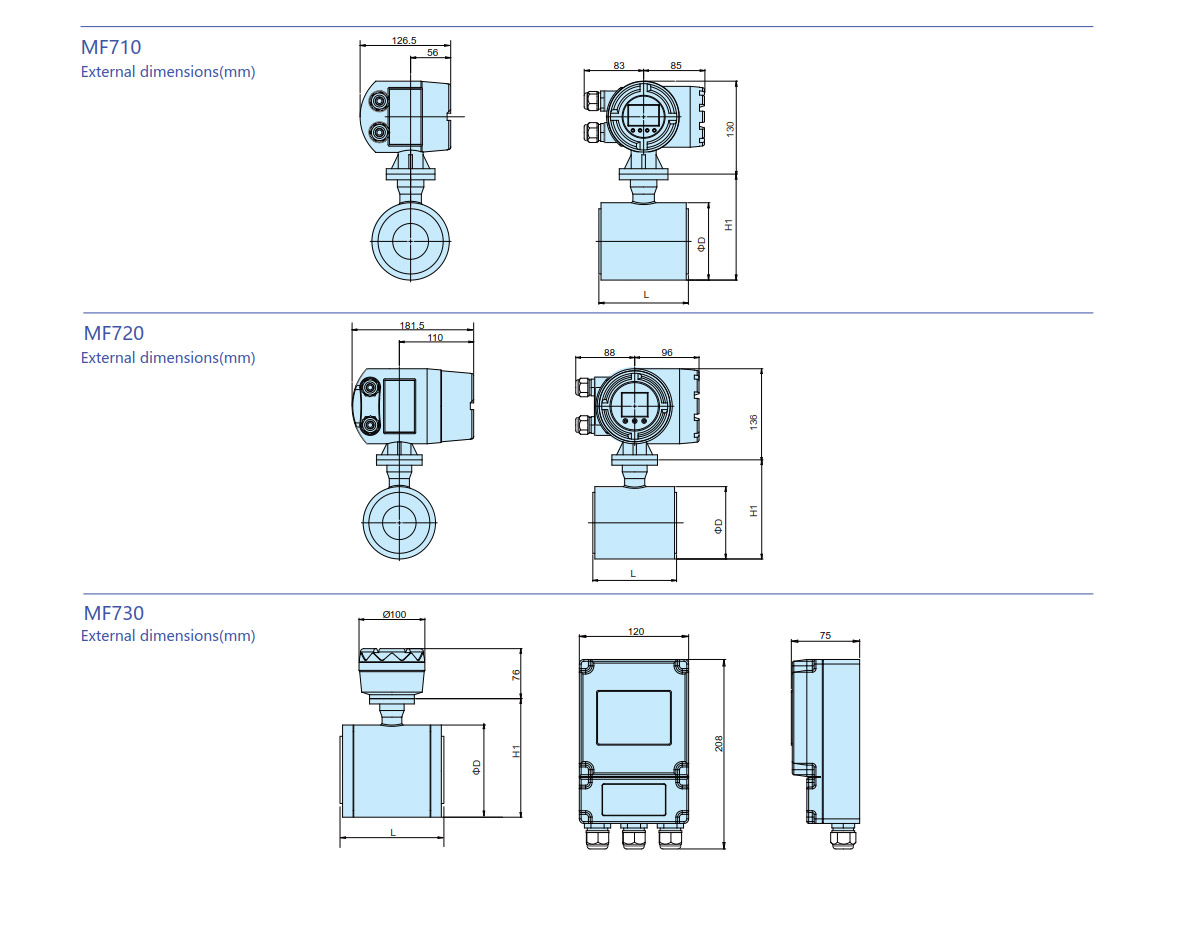

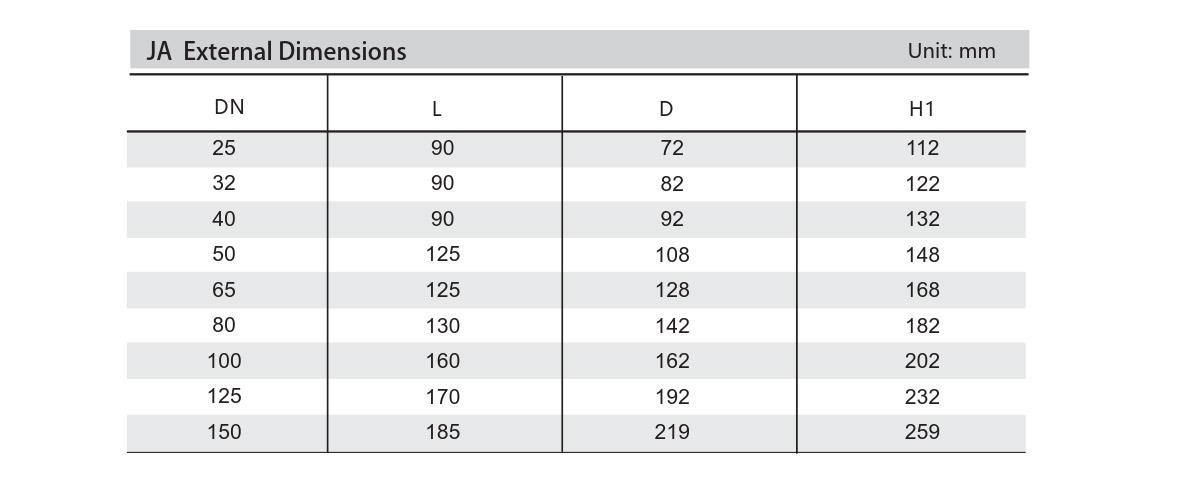

  • External Dimensions
  • Standard

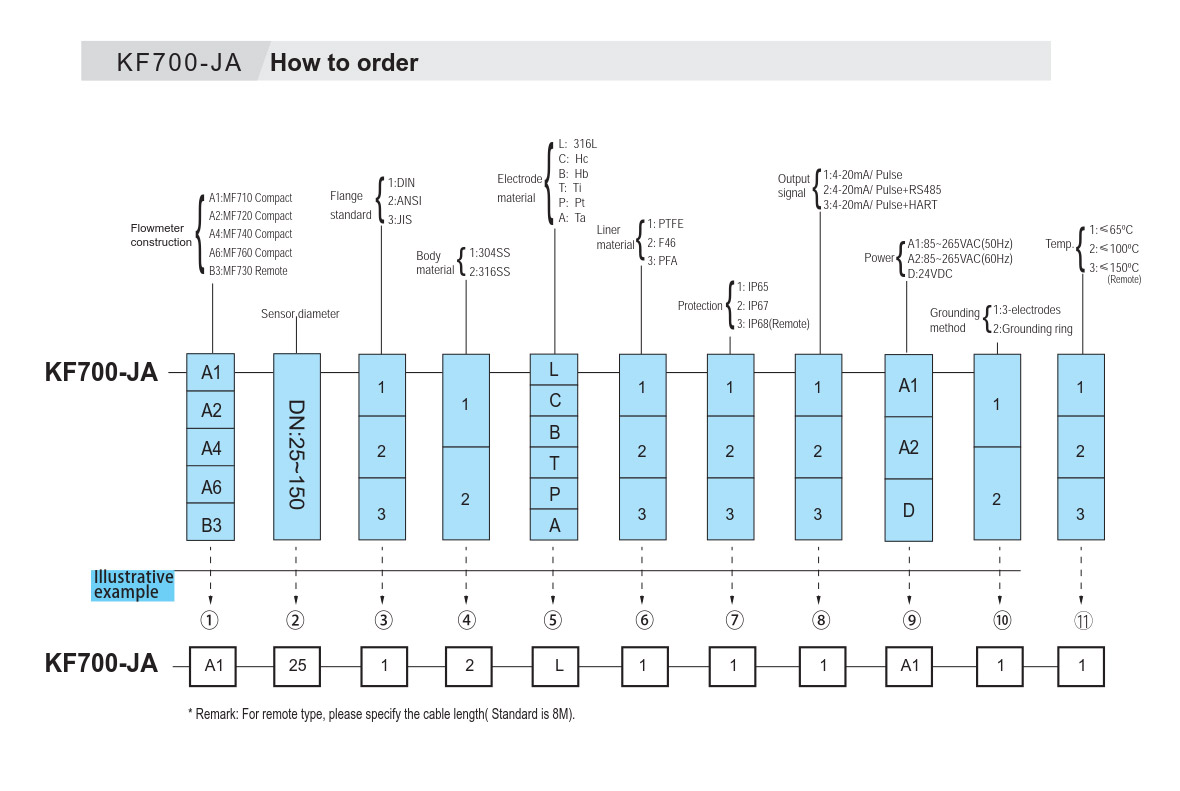

  • How to order
