High Pressure Electromagnetic Flowmeter

High Pressure Electromagnetic Flowmeter

Performance Feature
Diameter:DN15mm-DN150mm
Electrodes:316L,Hb,Hc,Ti,Ta
Liner: F46
Medium:conductivity liquids (containing solid-liquid two-phase)
Medium conductivity:≥5μ s/cm ,softener water≥20μ s/cm
Accuracy:±0.5%RS-±1.0%RS
Velocity of flow:0.1m/s-10m/s
Working temp.:compact-25°C-100°C,remote≤150°C
Working pressure:≤25Mpa
Protection class:IP65
Optional converter type: MF710/720/730/74

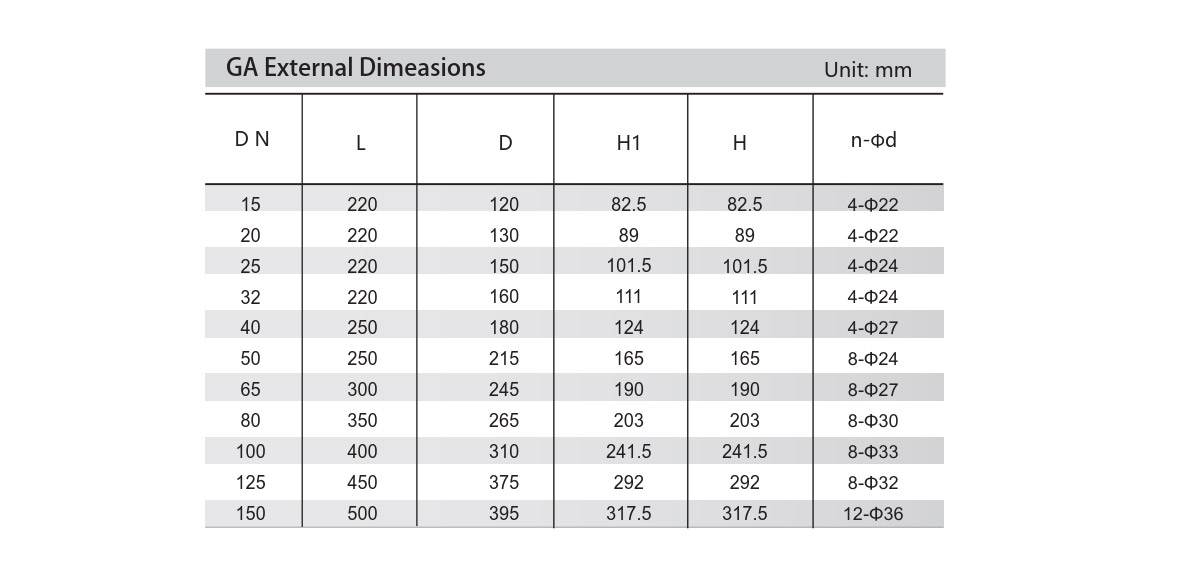

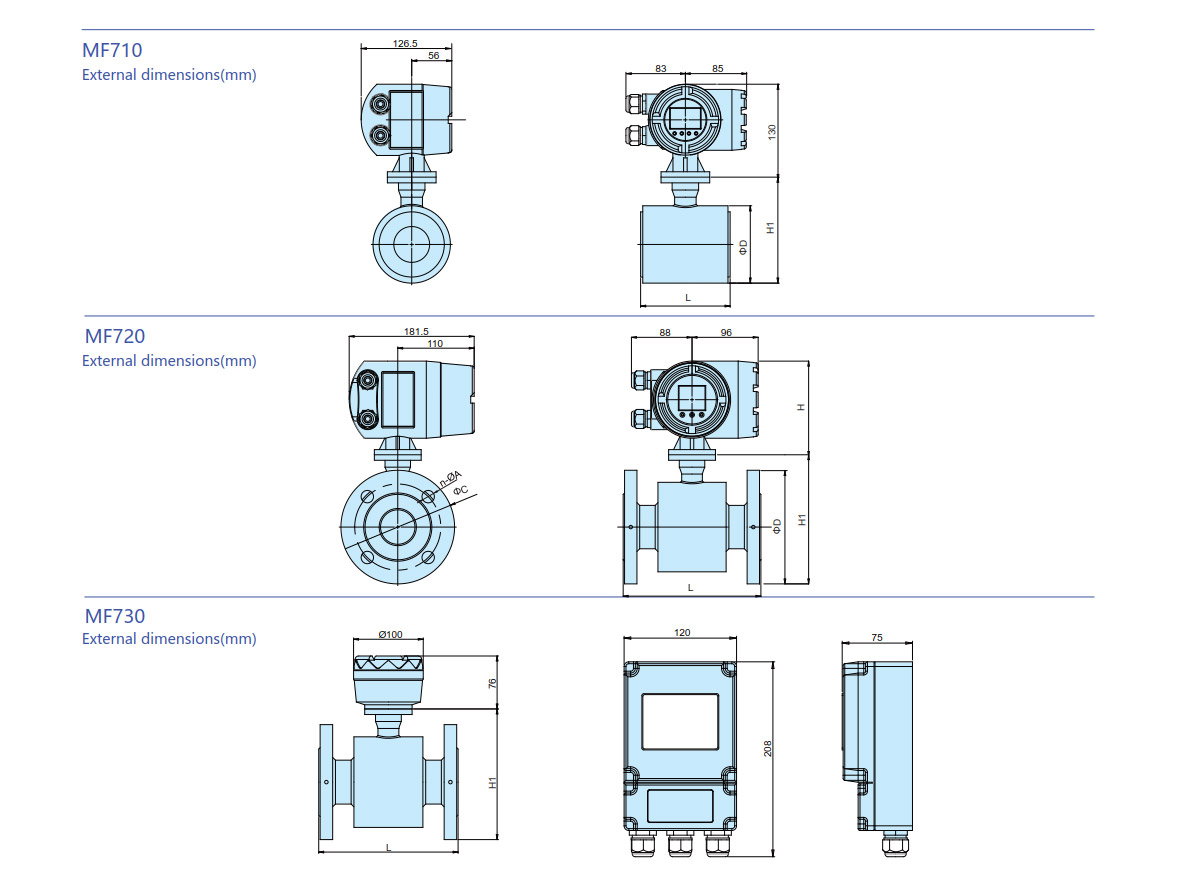

  • External Dimensions
  • Standard

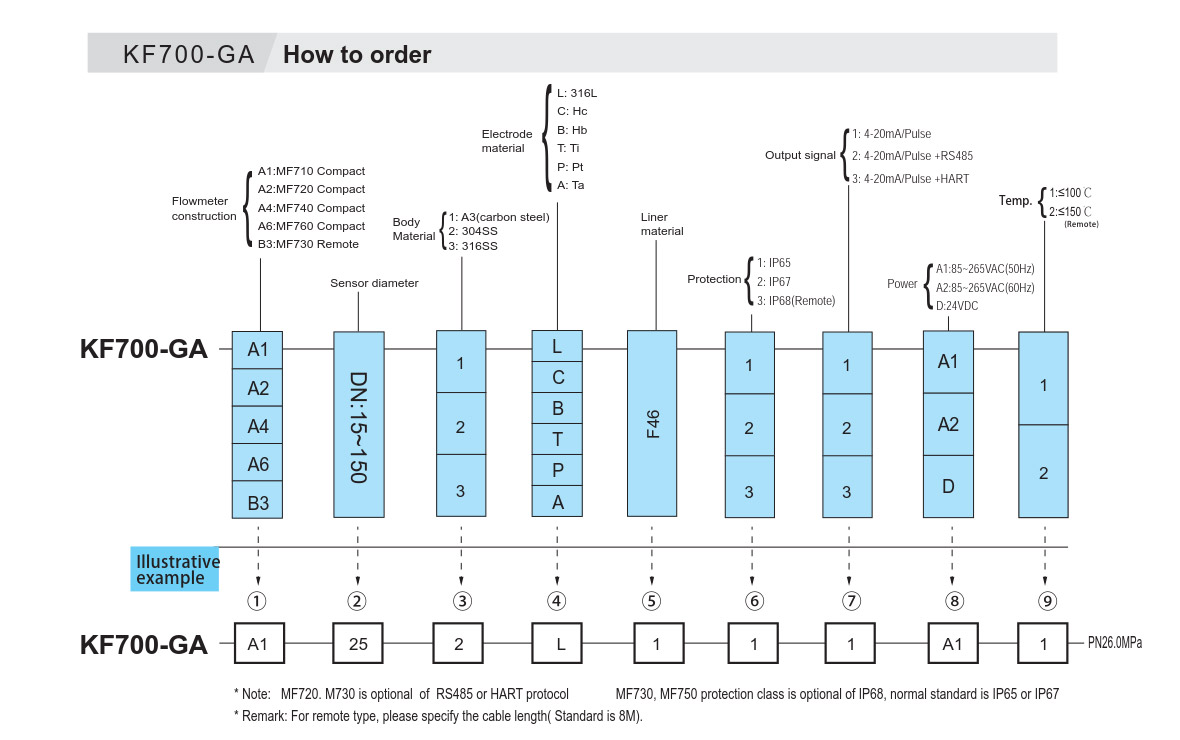

  • How to order
