Insertion Electromagnetic Flowmeters (KF700H)

Insertion Electromagnetic Flowmeters (KF700H)

Performance Feature
Diameter: DN50mm-DN2000mm
Electrodes: 316L,Hb,Hc
Liner: PTFE
Medium: conductivity liquids
Medium conductivity: ≥20μ s/cm
Accuracy: ±2%RS
Velocity of flow: 0.3m/s-10m/s
Converter optional is 720/730(remote)
Measure direction: forward/reverse
Environment temp.: -25℃-60℃, relative humidity 90%
Working pressure: 0.6MPa-1.6MPa
Working temperature: -25C-80C
Power supply: 85~265VAC(50HZ or 60HZ),24VDC
Installation: compact,remote

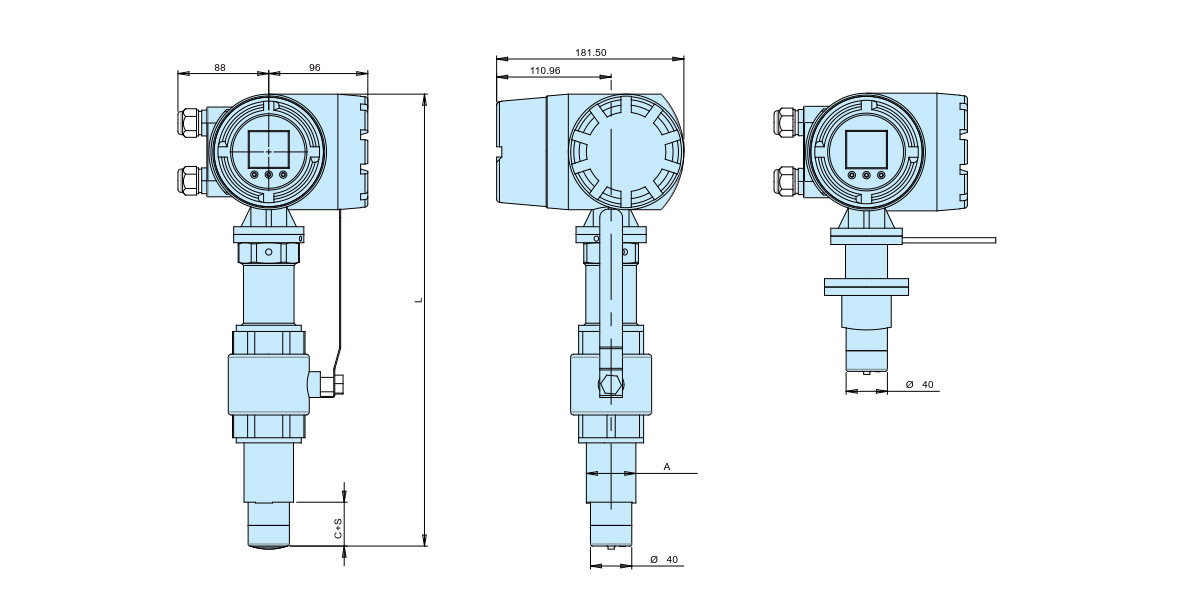

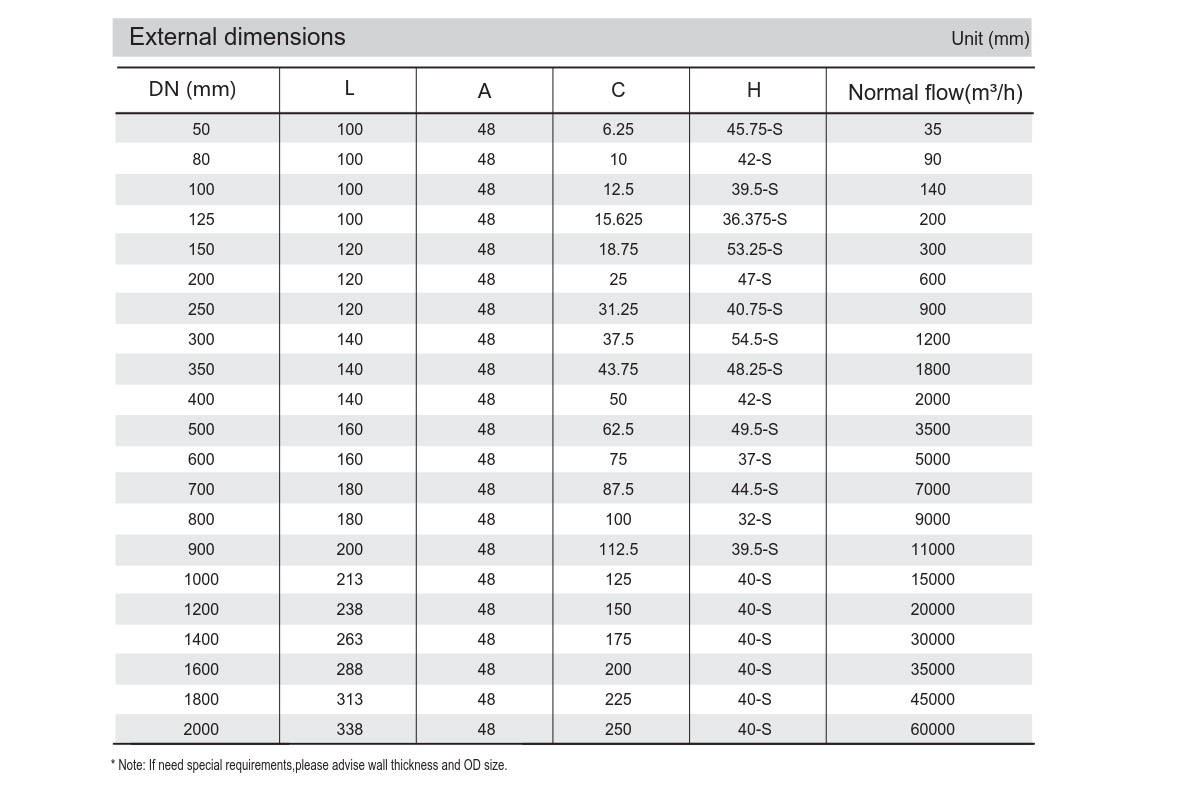

  • External Dimensions
  • Standard

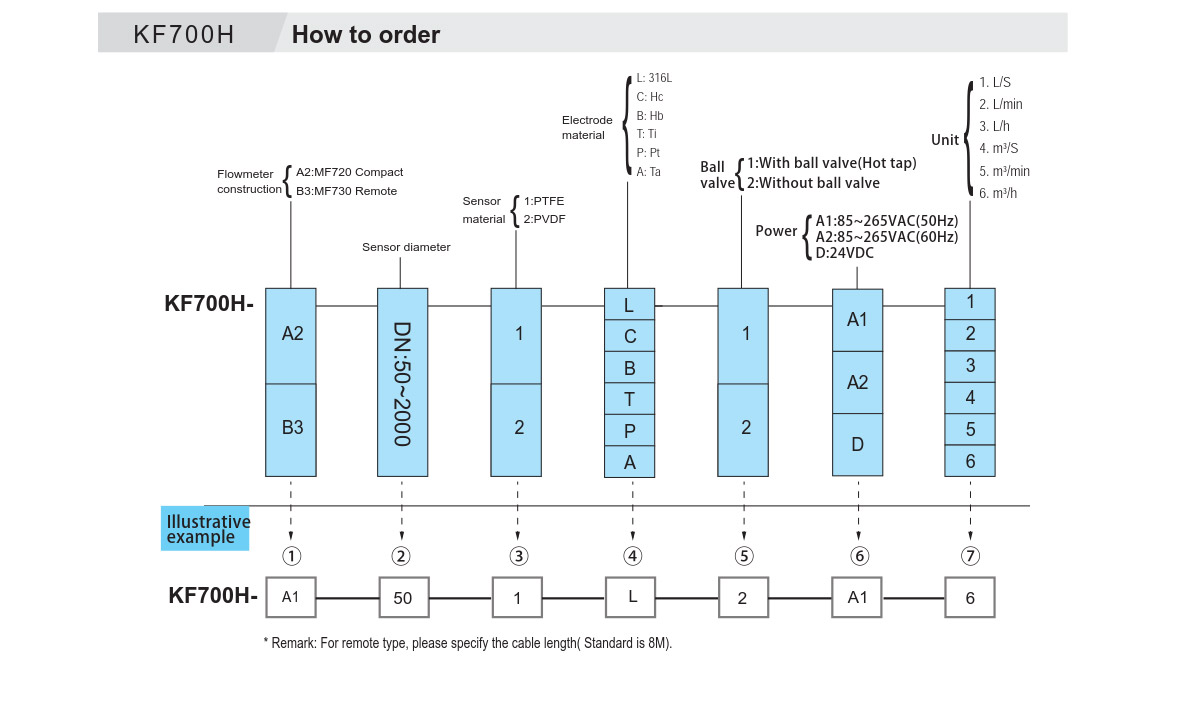

  • How to order
