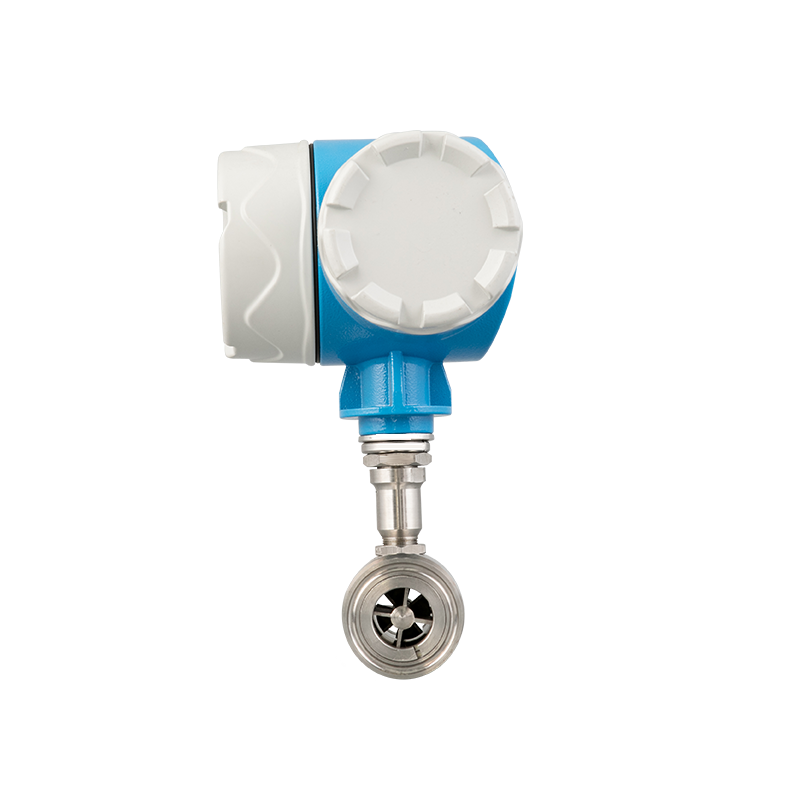

KF500 Series Turbine Transducers

KF500 Series Turbine Transducers

Turbine transducers are used for the precise measurement of instantaneous flow rates and flow quantities of low-viscosity fluids.lt can be widely used in the fields of Petrol, chemical industry, metallurgy, scientific research for measuring or control. Several output and display options can be selected.

1.PT: 3 wires, 24VDC power, pulse, output without local display.
2.CT: 2wires, 24 VDC 4-20mA output without local display.
3.BT: Battery power, instantaneous flowrate and totalizer.
4.IT: 24VDC/85〜265VAC, 4-20mA and pulse output with instantaneous flowrate and totalizer.

General enquiries
  • External Dimensions

  • DN

    (mm)

    		 Measuring range (m3/h)

    Medium
    temp

    (℃)

    PN

    (MPa)

    Env.

    temp

    (℃)

    Pressure

    loss

    (MPa)
    Error 0.5°% Error 1.0%
    2* / 0.01~0.13 -20~100 1.6 -25~66 0.12
    3* / 0.04~0.25
    4* / 0.04~0.25

    6.3

    16*

    25

    40*

    		 0.08
    6* 0.1~0.6 0.1~0.6
    10 0.25~1.2 0.2~1.2 0.05
    15 0.6~4 0.4~4 0.035
    20 1.1~7 0.7~7 2.5 or 6.3
    25 1.6~10 1~10  0.025
    32 2.5~16 1.6~16
    40 3~20 2.5~25 1.6 or 2.5
    50 4~40 4~40
    65 6~60 6~60
    80 10~100 10~100 1.6
    100 20~160 16~160
    150 50~300 40~400
    200 100~600 80~800
