Aluminum Mini Electromagnetic Flowmeters (KF700MF Series)

Aluminum Mini Electromagnetic Flowmeters (KF700MF Series)

Performance Feature
Diameter: DN2~DN25
Electrodes: 316L
Medium: conductivity liquids
Medium :≥5μs/cm , softener water≥ 20μs/cm
Accuracy: ±2.0%RS
Velocity of flow: 0.3m/s -10m/s
Working temp.: -10°C~+60°C
Working pressure: 0.6MPa~1.0MPa
Protection: IP67
Output Signal: Pulse/Frequency
Power: 24VDC
Installation:compact, remote
Body material: Aluminium

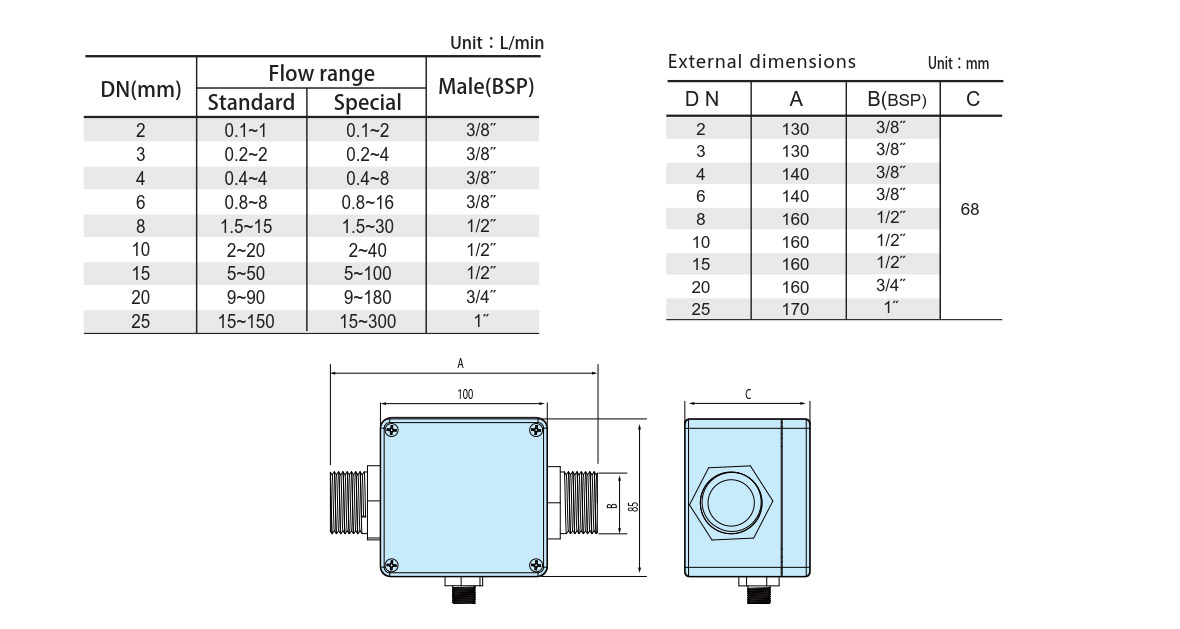

  • External Dimensions
  • Standard
