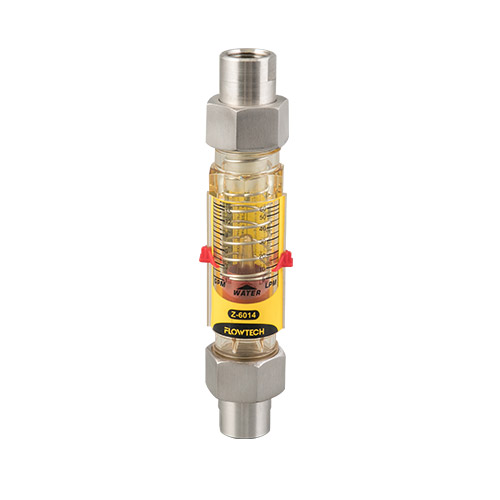

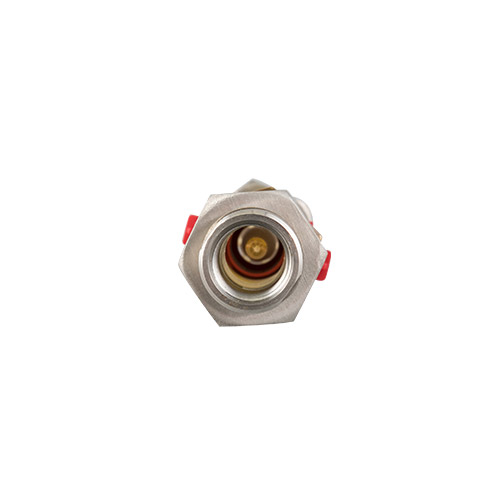

Pipeline Flowmeter(Mount In Any Position) (Z-6000 Series)

Pipeline Flowmeter(Mount In Any Position) (Z-6000 Series)

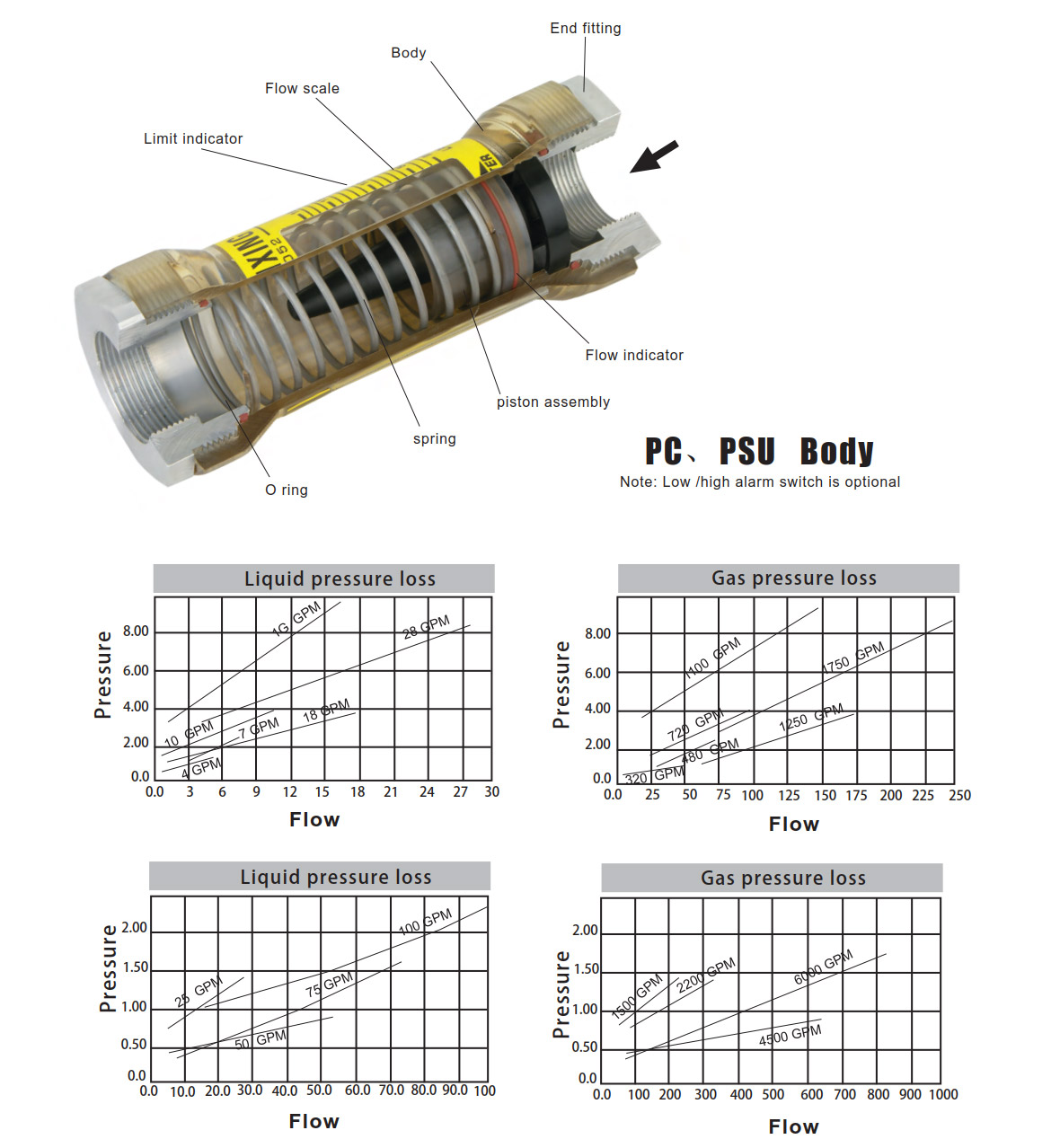

The main frame of the flow meter of this type is made of engineering plastics of high strenght(PC Polycarbonate or PSU polysulfone),Injection molded, chemical resistant Polysulfone which is breaking-proof and corrosion-proof,Direct exposure to sunlight is not recommended and can be mounted in any position.It is capable of bearing high pressure,easy to read(the reading is red O-ring),and equipped with indicating device showing the high and low limit of the flow.

Temperatire limited:PC:0~60℃
PSU:0~100℃
Pressure limit: PC: 10Bar
PSU: 20Bar
Accuracy:±6%
Alarm switch is optional

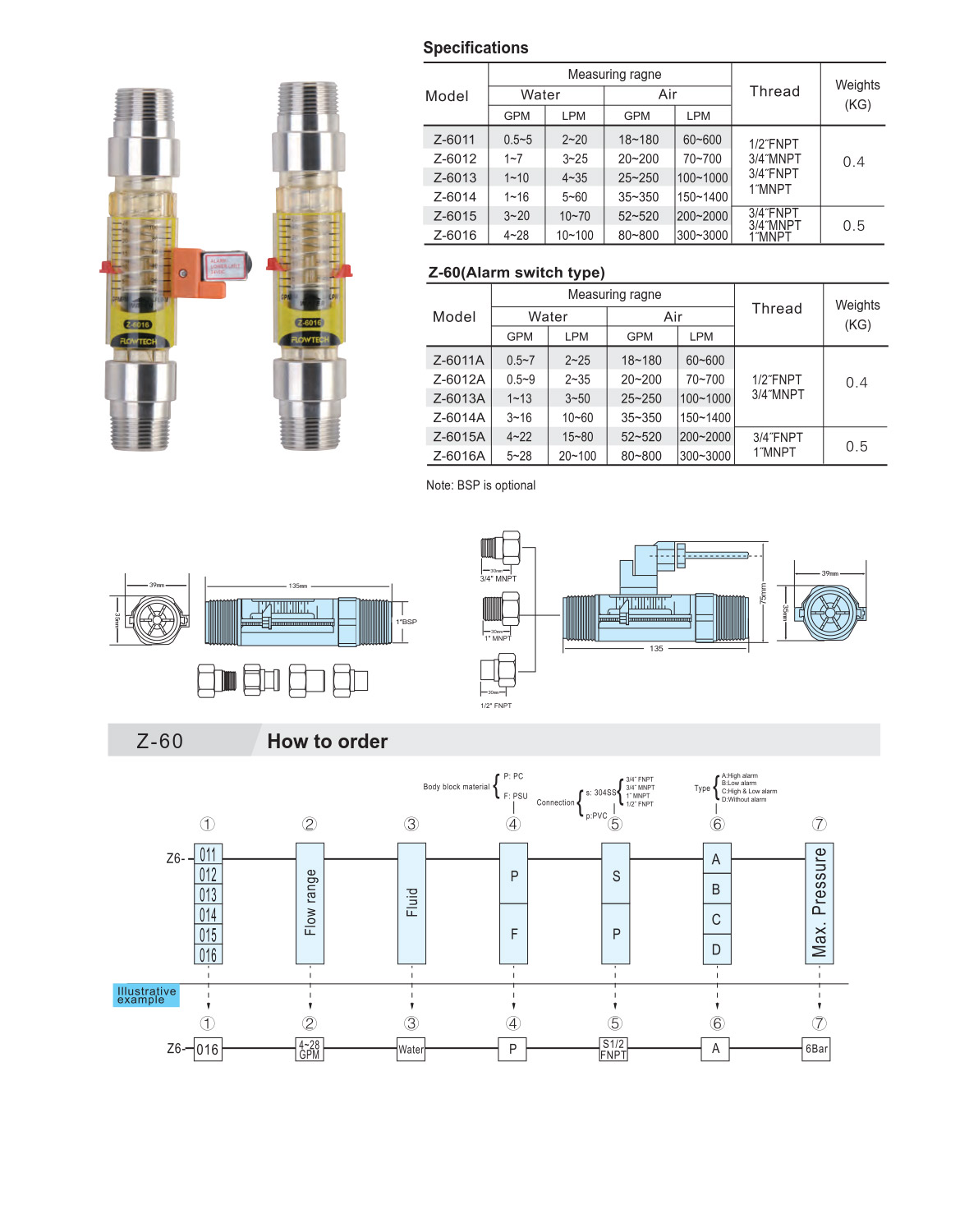

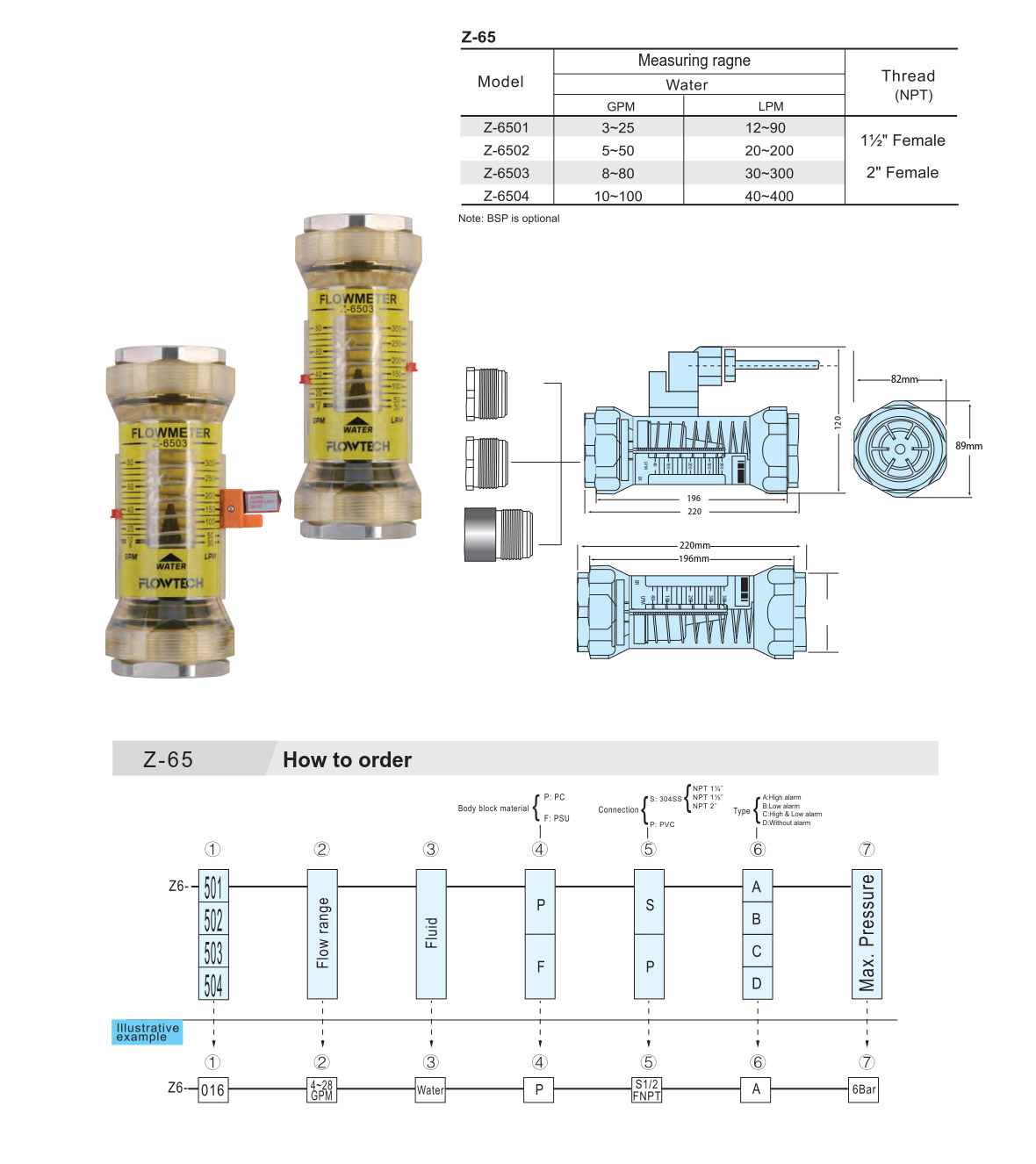

  • External Dimensions
  • Standard
  • How to order
