Plastic Electromagnetic Flowmeters (KF700P)

Plastic Electromagnetic Flowmeters (KF700P)

Performance Feature
Diameter: DN25~DN150
Electrodes: 316L, Hb, Hc, Ti, Ta, Pt
Liner: PBT
Medium: conductivity liquids
Medium Diameter: ≥20μs/cm
Accuracy: ±0.5%RS, ±1.0%RS
Converter Model: MF710 / MF730 / MF750 / MF760
Velocity of flow: 0.1m/s -10m/s
Working temp.: -25°C~+100°C
Working pressure:1.0MPa
Output Signal: 4 ~ 20mA、frequency
Power: 85~265VAC (50HZ or 60HZ) , 24VDC
Installation:compact, remote

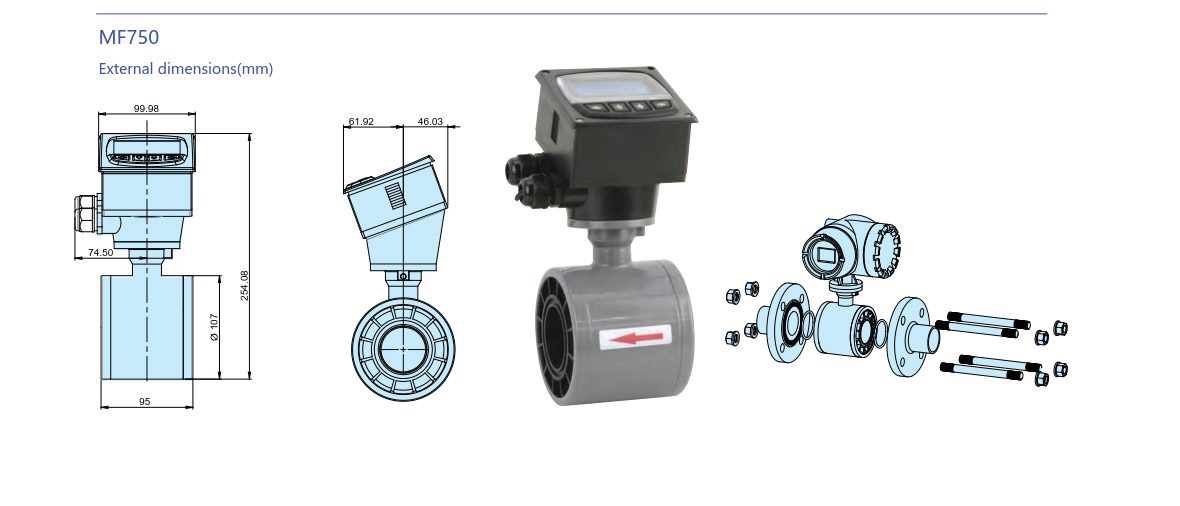

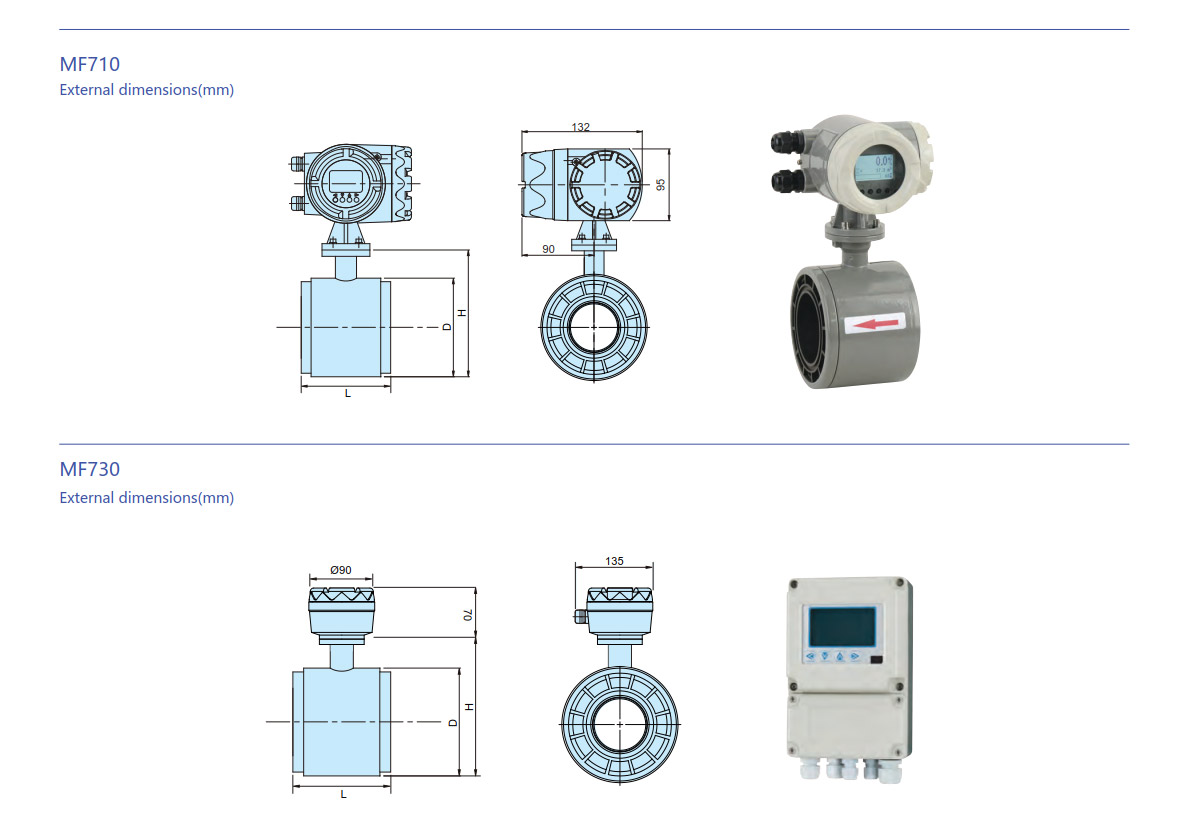

  • External Dimensions
  • Standard

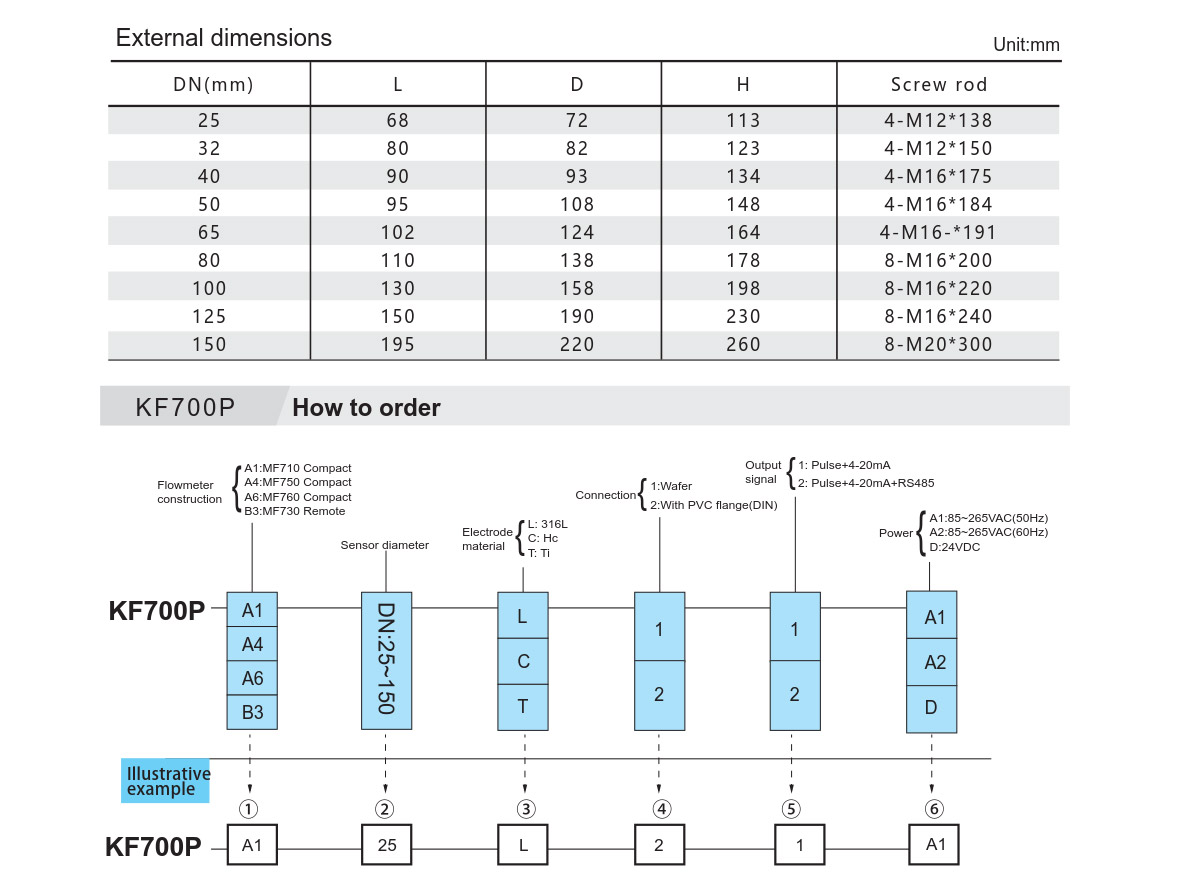

  • How to order
