Direct reading scale Plastic Flowmeters (Z-500M(Male) Series)

Direct reading scale Plastic Flowmeters (Z-500M(Male) Series)

Features:

Z-500M series of free standing, female ends
Low cost of double scale flowmeter
Union type in line fittings provide ease of installation and maintenance.
O-rings side engage for positive seals.
Direct reading scale(GPM-LPM water)is standard.
special scales are available.
Easy to read scale is positioned directly in front of metering tube.
High/low flow alarm switch(reed type) is rated at 24VDC.
Working pressure limit: 0.6Mpa
Working temperature limit: 60°C
Accuracy: ±5%

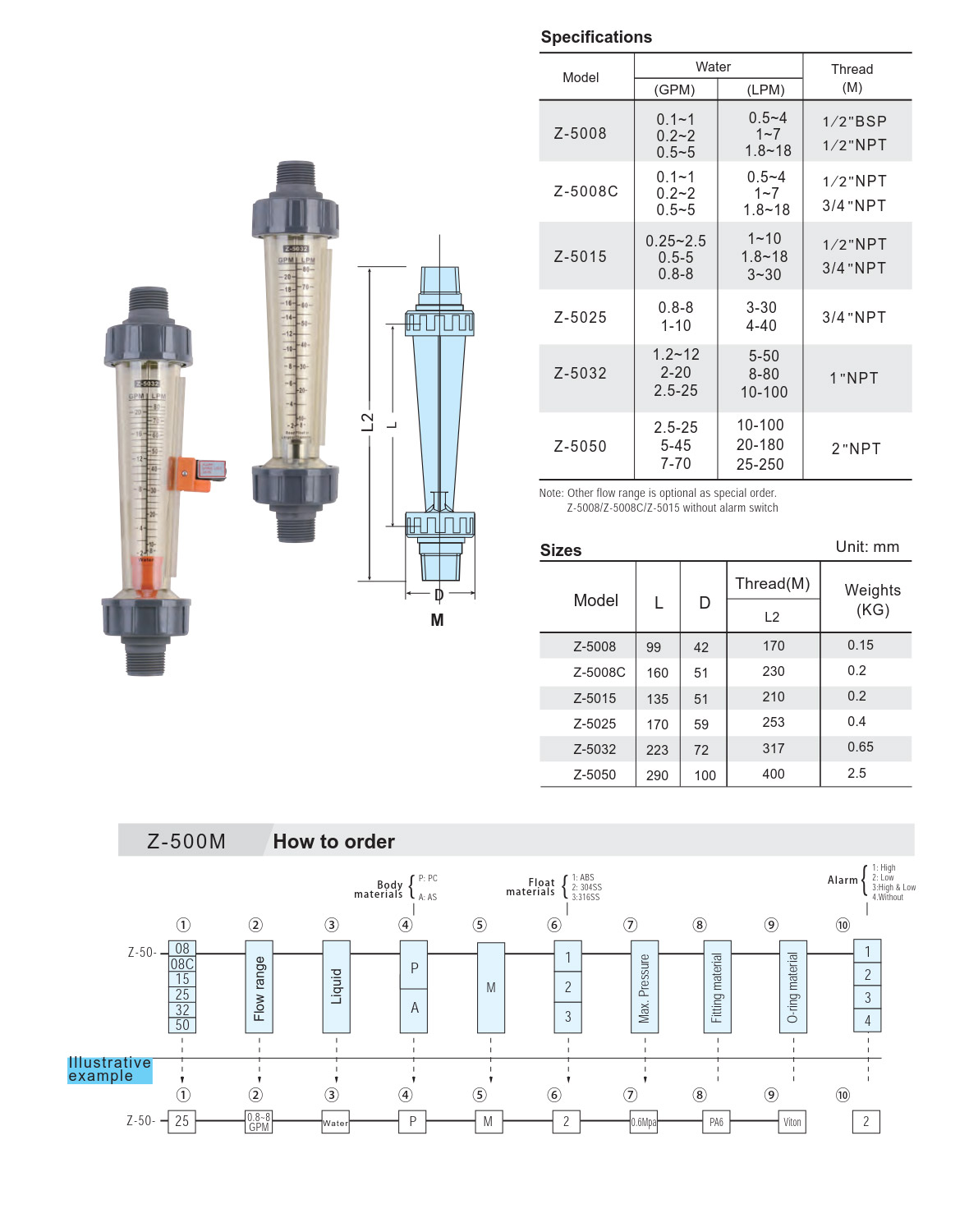

  • External Dimensions
