Preservative Plastic Flowmeters (Z-560 (PSU) Series)

Preservative Plastic Flowmeters (Z-560 (PSU) Series)

Features:

Injection molded, chemical resistant Polysulfone
Easy to read scale. Silkscreened with black ink for optimum contrast
Direct exposure to sunlight is not recommended
Max working pressure : 1.0Mpa
Max working temperature: 60°C (120°C is optional)
Accuracy: +/-5%
O-ring:Viton(EPDM is optional)
Standard float :PP (PVDF/PTFE is optional)

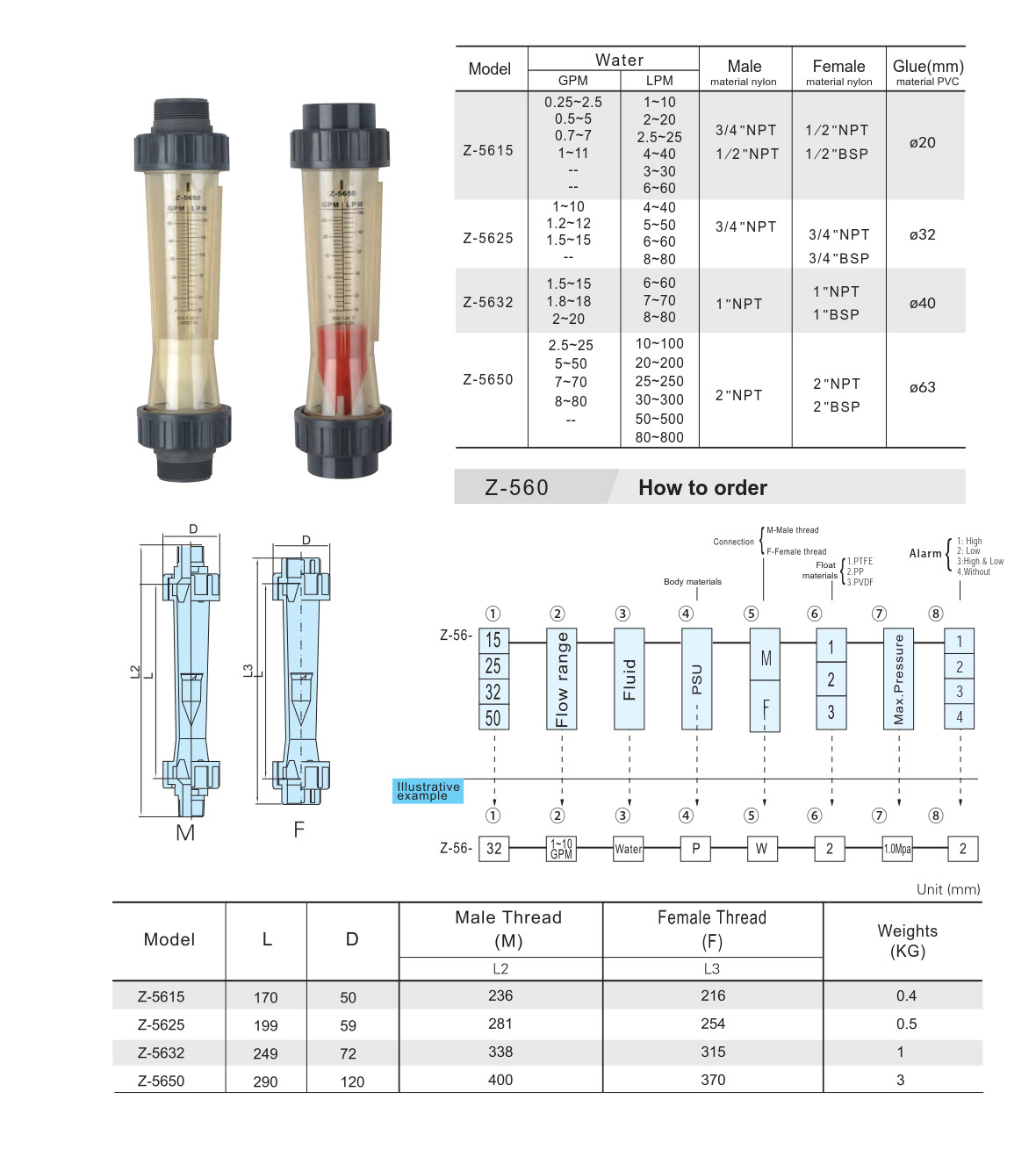

  • External Dimensions
