High performance Turbine Transducers (KF500)

High performance Turbine Transducers (KF500)

Turbine transducers are used for the precise measurement of instantaneous flow rates and flow quantities of low-viscosity fluids.It can be widely used in the fields of Petrol, chemical industry, metallurgy, scientific research for measuring or control. Several output and display options can be selected.

1.PT: 3 wires, 24VDC power, pulse, output without local display
2.CT: 2wires, 24 VDC 4-20mA output without local display
3.BT: Battery power, instantaneous flowrate and totalizer
4.IT: 24VDC/85~265VAC, 4-20mA and pulse output with instantaneous flowrate and totalizer

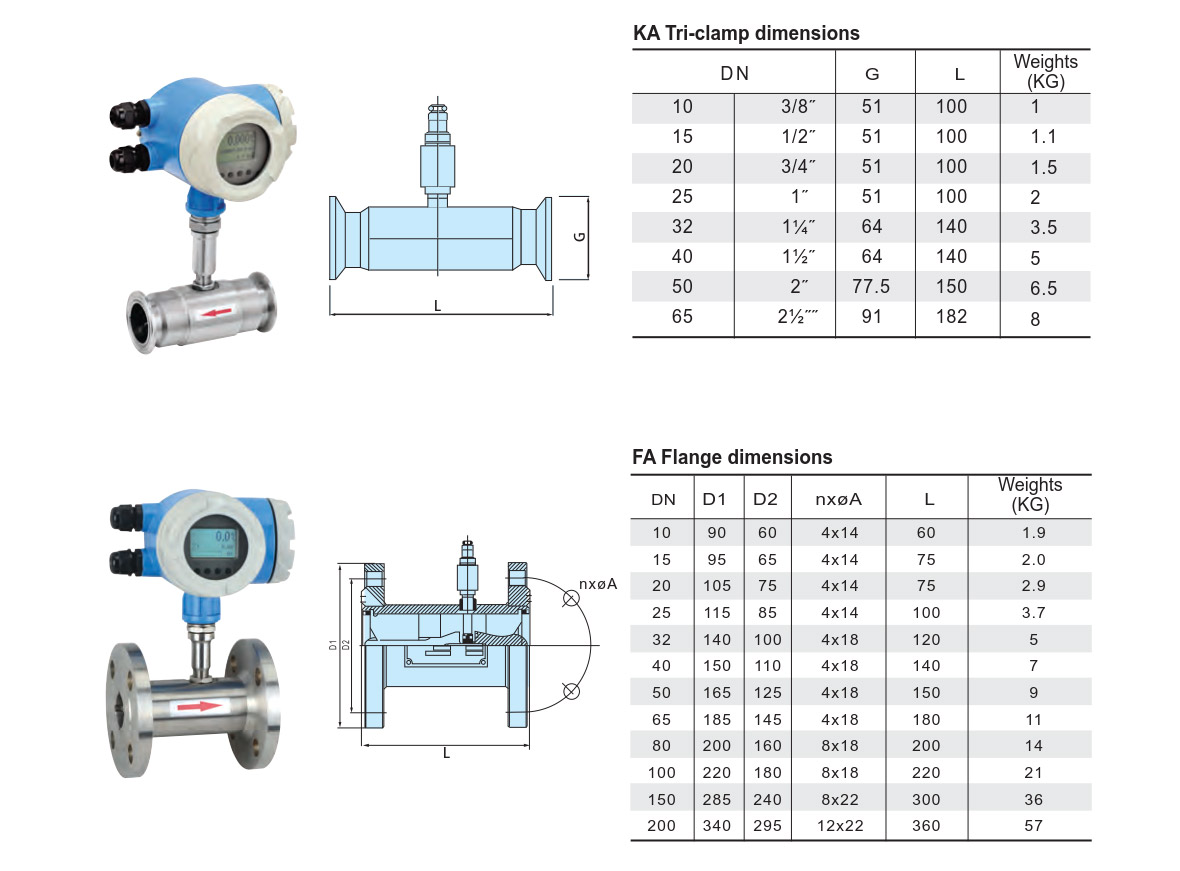

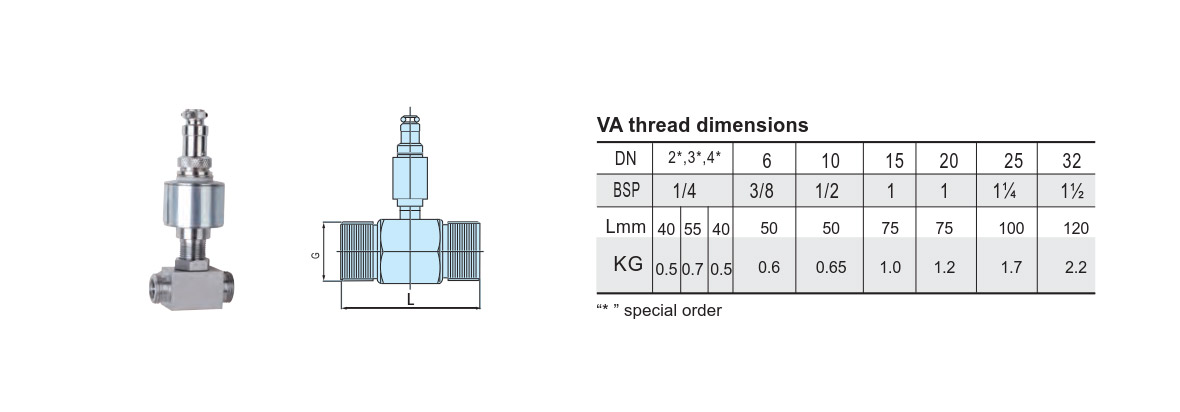

  • External Dimensions

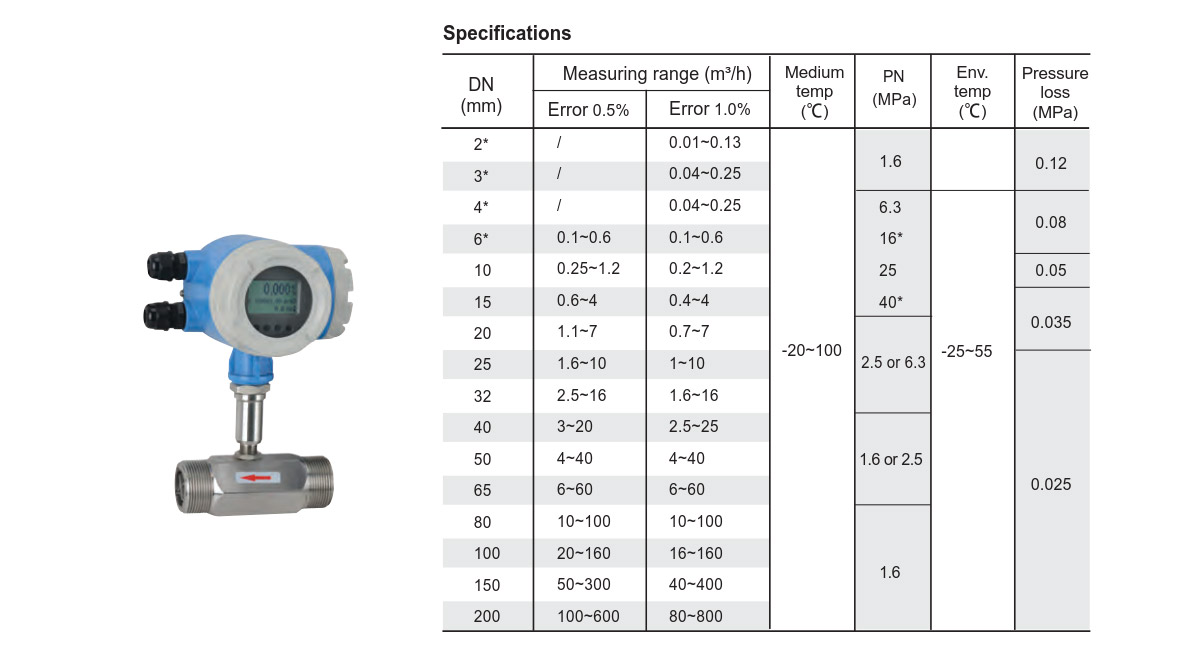

  • Standard

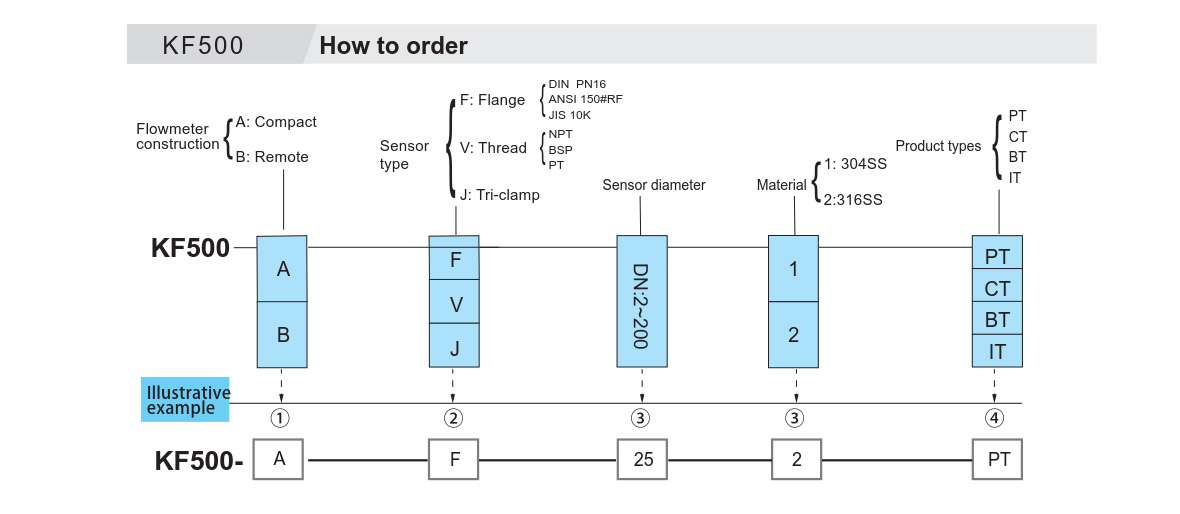

  • How to order
  • Flow range chart pupe size
